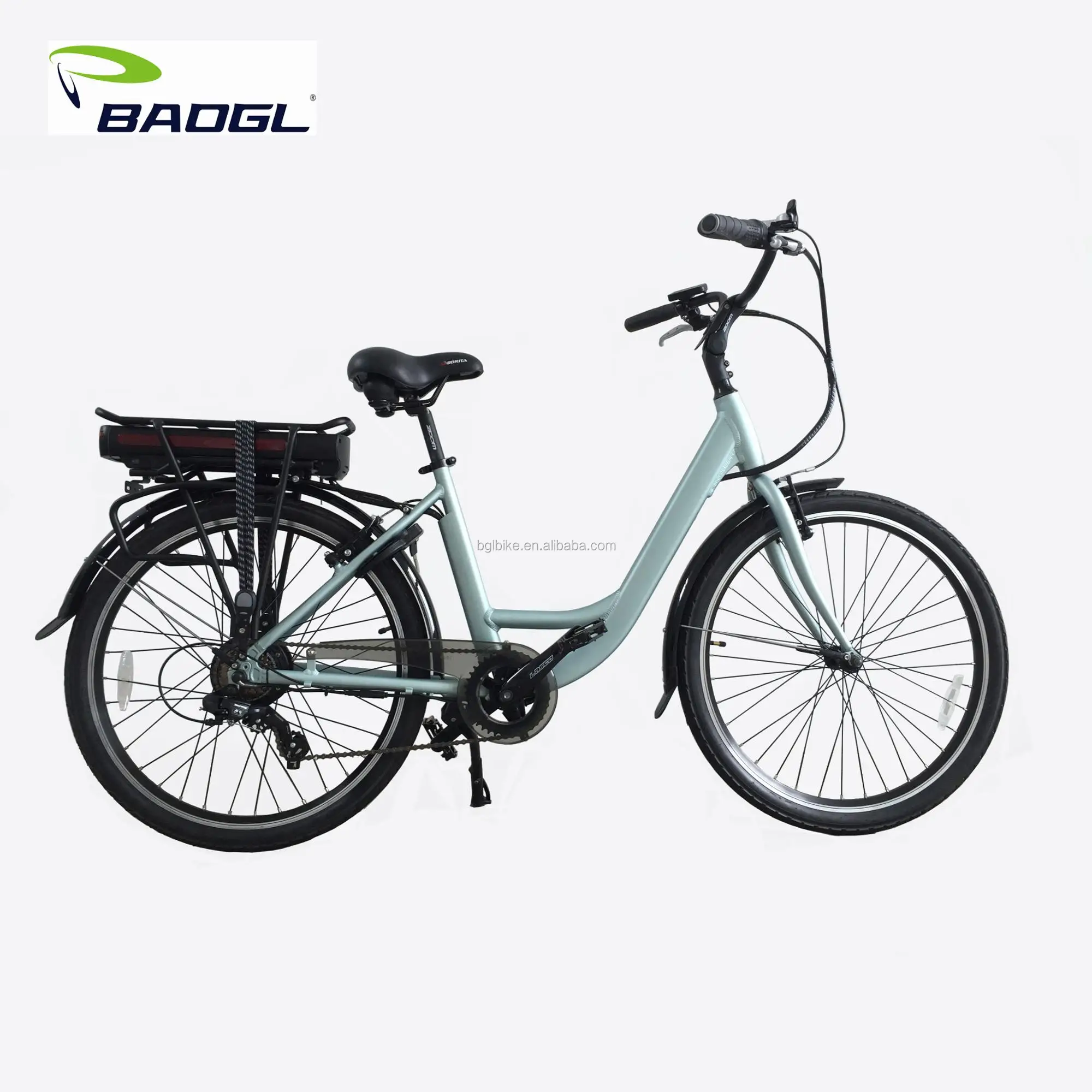

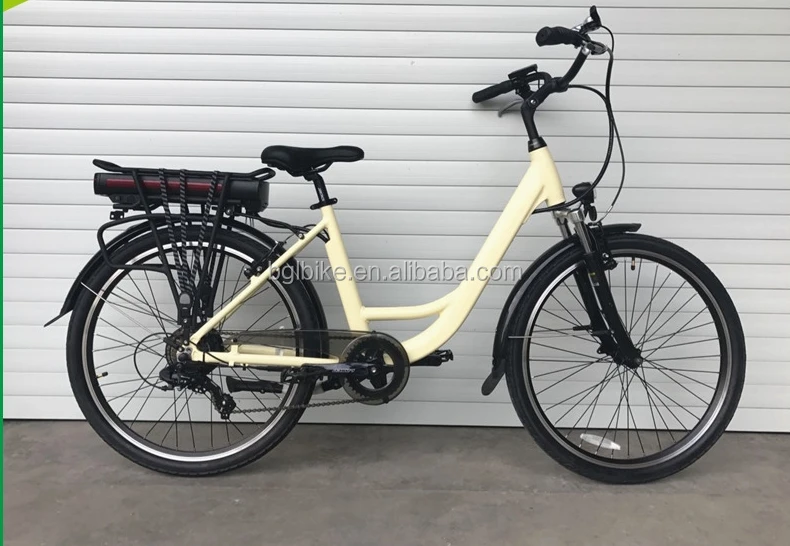

2018 e bicycle electric bike/retro electric bike with 250W 14AH e-bike
- Shipping:
- Support Sea freight
- Wattage:
-
251 - 350W
- Voltage:
-
36V
- Power Supply:
-
Lithium Battery
- Wheel Size:
-
26“
- Motor:
-
Brushless
- Certification:
-
ce
- Frame Material:
-
Aluminum Alloy
- Foldable:
-
No
- Max Speed:
-
<30km/h
- Range per Power:
-
31 - 60 km
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
BAOGL
- Model Number:
-
ECB04
- Range:
-
30-40kms
- Fork:
-
SR Suntour Basic Suspension
- Model:
-
ECB04
- Brake(front /rear):
-
Disc brakes / Disc brake
- Charging time:
-
4-6 Hours
- Speed gears:
-
Shimano 6-speed gears
- Tire:
-
26"*1.75
- Color:
-
customized
- Battery:
-
36V/10Ah, Lithium battery
- Controller:
-
intelligent controller
- Supply Ability:
- 2000 Unit/Units per Month 20,000 frames per month
- Packaging Details
- Carton siez:153*23*76cm
Container:105pcs/20ft 225pcs/40ft 263pcs/40HQ
- Port
- Ningbo port
- Lead Time :
- 45 Days after payment
Online Customization
ECB04 | 36V Economic Spec |
Motor | 36V250W(XF) Rear-Mounted Brushless Hub |
Battery | 36V10AH(China) Lithium-ion |
Charge Time | 4-6 hours |
Charger | 2A CE/UL |
Controller | 36V15A integrated controller |
Estimated Range | 19 miles (30 km)-25 miles (40 km) |
Display | LED display |
Drive Mode | Cadence Sensing Pedal Assist, Trigger Throttle (6 Magnet Sensor Disc) |
Top Speed | EU:15.6 mph ( 25 kph )/North America:20 mph ( 32 kph ) |
Total Weight | 48 lbs ( 21 kg ) |
Frame | 26", 6061 Aluminum Alloy |
Fork | Rigid, Aluminum Alloy |
Gearing | 7 Speed 1x7, Shimano Tourney TX |
Shift | 7 Speed Shimano |
Cranks | 42 Tooth Chainring, 170 mm Yaxin Crank Arms |
Pedals | Yonghua, Aluminum Alloy |
Headset | Henglong, Sealed Bearing |
Stem | Sanshun, Aluminum Alloy |
Handlebar | Sanshun, Aluminum Alloy |
Brake | V Brake |
Levers | Wuxing Levers and Motor Inhibitor |
Grips | Wuxing Rubber Grips |
Saddle | DFH Sports |
Seat Post | Sanshun Aluminum Alloy |
Rim | Aluminum Alloy, Deep V, Black |
Spokes | Stainless Steel, 36H |
Tire | Kenda, 26 x 1,75 |
Kickstand | Kaiwei Kickstand |
LED Lights | Huanyu LED lights(Front/Rear) |
Carton Sizes | 153*23*76cm |
Container | 105pcs/20ft 225pcs/40ft 263pcs/40HQ |







Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
